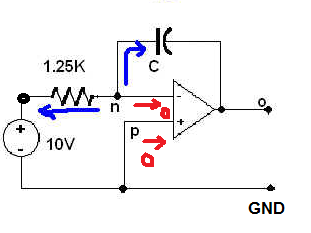

- Node Voltage in Op Amp Circuit
- Circuits involved with Op
Amps. In the analysis of a circuit with Op Amps, the
nodal analysis (i.e., node voltage method) is a sure fire
tool. The reason is like this: The two things you have to
know and carry all the way to your excellent-pay job are
that (1) the voltage at the inverting input (read as node
n) and the voltage at the non-inverting input (read as
node p) are the same, and (2) there are no currents
flowing at the inverting and the non-inverting inputs
toward the Op Amp. I wonder you missed one important
thing above. We said the 'voltage at node
*n*' or 'voltage at node*p*', as we expressed Vn and Vp, respectively. So now you know why the node voltage method is the method for circuits with Op Amps. This leads to another discussion. Vn is then the voltage between*n*and GND. Vp is the voltage between*p*and GND. Similarly, Vo, at the output is the voltage between*o*and GND. When one end of a source is connected to the GND, it's easy to figure the voltage at*n*or*p*, but when a source is not connected between a node and GND, you have to give a little more thought to find out the voltage at*n*or*p*.
